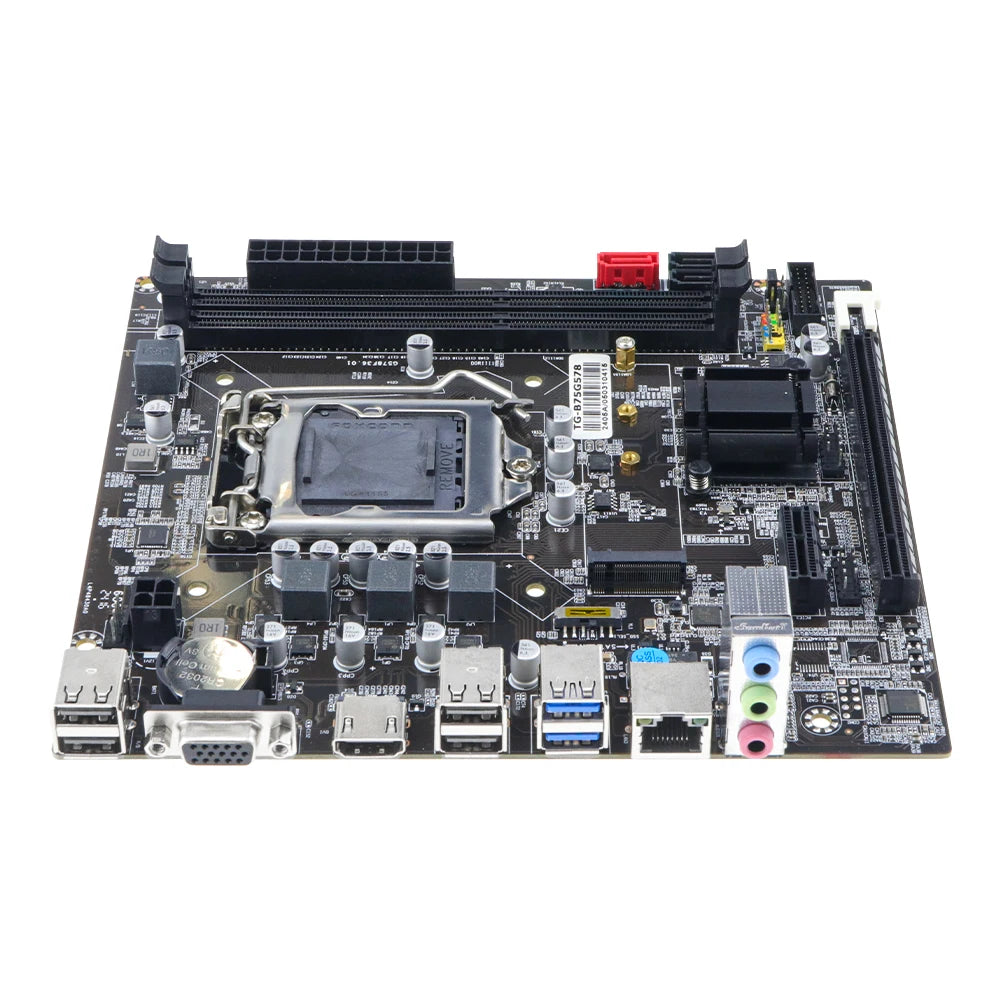

SOYO B75M Motherboard M.2 NVME PCIEx16 DVI Supports Dual-channel DDR3 RAM Intel Core 2/3 Gen CPU LGA1155 for Gaming Computer
SOYO B75M Motherboard M.2 NVME PCIEx16 DVI Supports Dual-channel DDR3 RAM Intel Core 2/3 Gen CPU LGA1155 for Gaming Computer
Couldn't load pickup availability
SPECIFICATIONS
Application: Desktop
Back I/O Ports: 1x RJ45,6 X USB 2.0,3 x Audio Jacks,DVI-I
Battery Included: No
Brand Name: SOYO
Certification: FCC,CE
Chipset: Intel B75
Chipset Manufacturer: Intel
Choice: yes
Form Factor: Micro-ATX
Hign-concerned Chemical: None
Max LAN Speed: 1000Mbps
Maximum Ram Capacity: 16 GB
Memory channel: Double
Number Of Memory Slots: 2
Number of M.2: 1
Number of PCI: 1
Number of PCIe x 1: 1
Number of PCIe x 16: 1
Number of SATA Ports: 2
Onboard Connectors & Header: 24-pin Main Power Connector,4-pin +12V Power Connector,Chassis(SYS) Fan Connector(s),USB 3.0 Connector,USB 2.0 Connector
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Ports: PCI-Express X1
Processor compatibility: Intel Others
Quality Certification: ce,ROHS,FCC
RAID Supported: Yes
SATA RAID: 0
Socket Type: LGA 1155
Special Features: None
Storage Interface Type: SATA 2,M.2 (NVMe)
Support Memory Type: DDR3
Supports M.2 SSD: 2280,2260
Usage Scenario: Household,Office
With CPU: No
Notice：The package does not include CR2032 batteries
**Product Specifications**

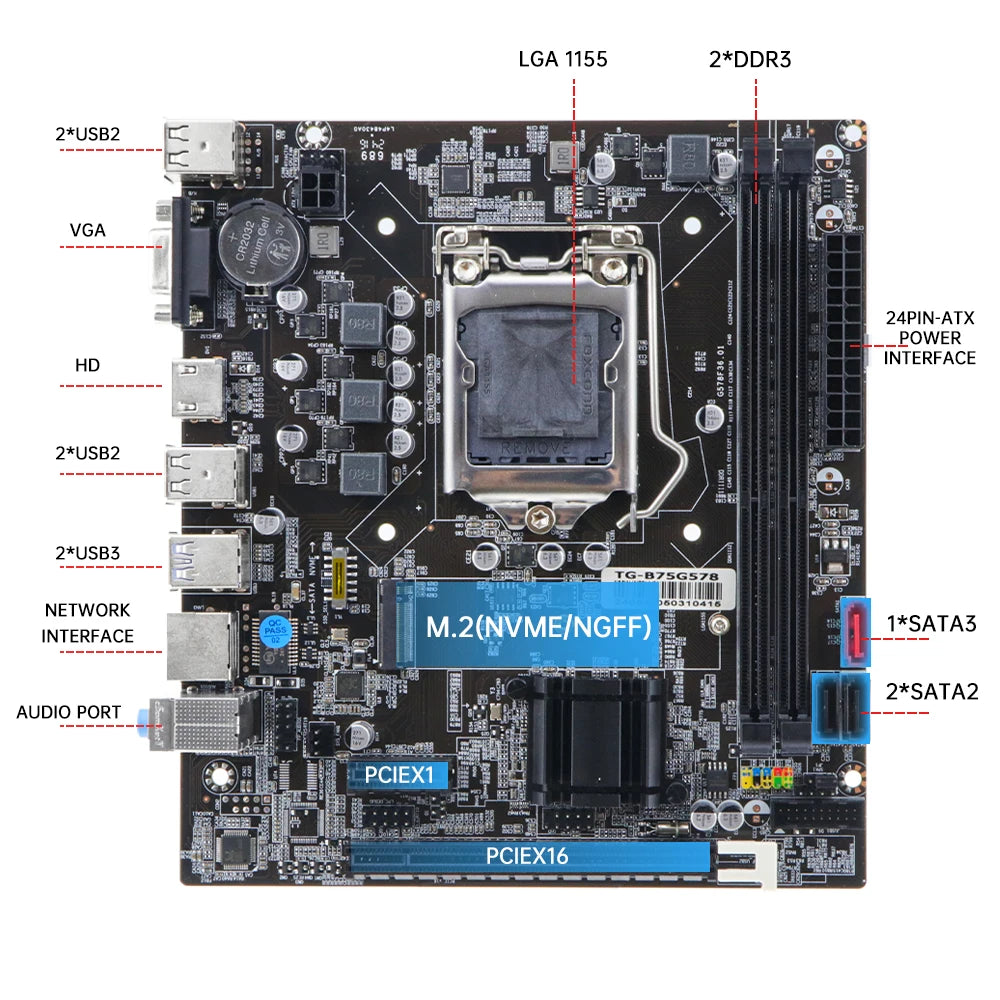

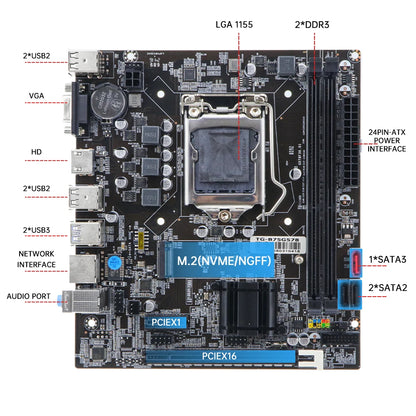

**CPU Support**
- Intel LGA 1155 Socket
**Chipset**
- Intel B75 Express Chipset
**Memory**
- 2x DDR3 DIMM Slots (Dual-Channel)
- Speed: 1066/1333/1600 MHz
- Maximum Capacity: 16GB
**Storage**
- 1x SATA 3.0 (6 Gb/s) Port
- 2x SATA 2.0 (3 Gb/s) Ports
- 1x NVME/NGFF M.2 Slot
**I/O Ports**

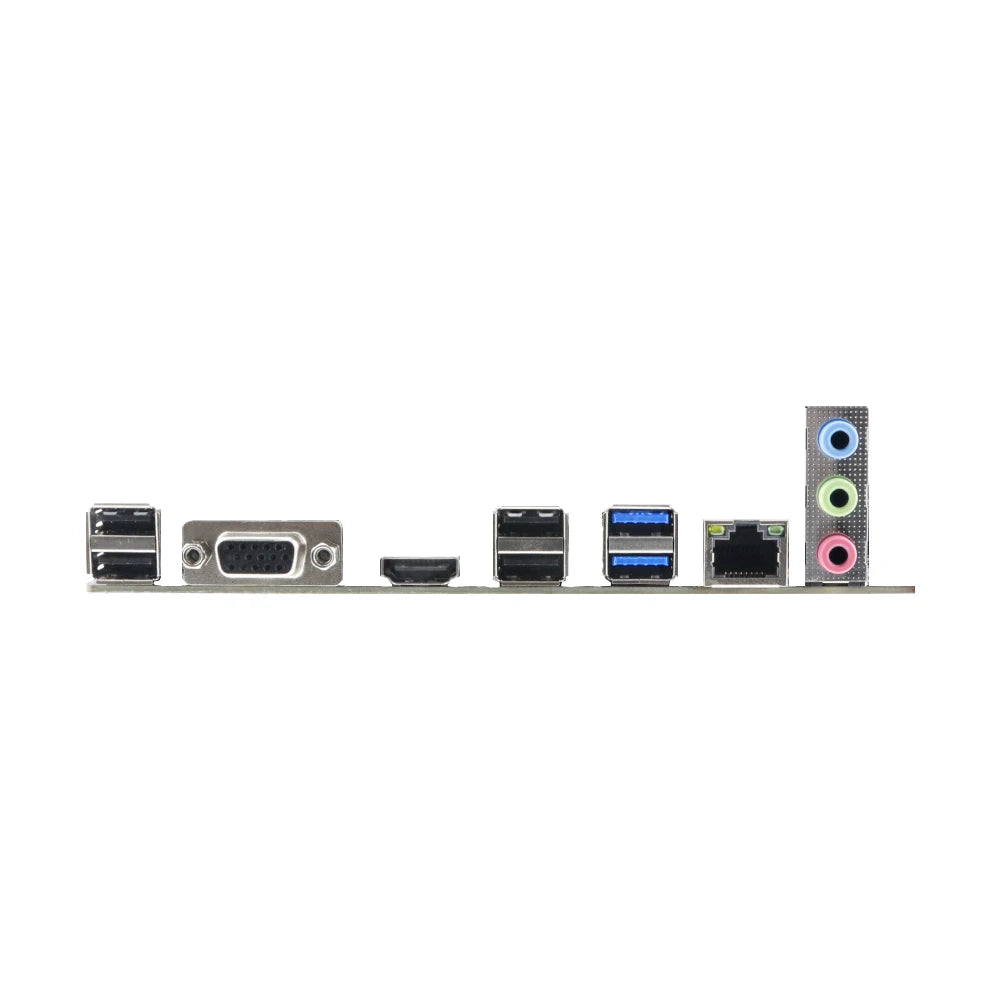

- **Rear Panel:**
- 4x USB 2.0 Ports
- 2x USB 3.0 Ports
- 1x HDMI Port
- 1x VGA Port
- 1x RJ45 Gigabit LAN Port (1000 Mbps)
- 1x 3-in-1 Audio Port (Line In/Line Out/Mic In)
- **Front Panel Headers:**
- 1x F_AUDIO (Front Audio)
- 1x F_PANEL (Front Panel Controls)
**Onboard Connectors**
- 1x 24-Pin ATX Power Connector
- 1x 4-Pin ATX12V Power Connector
- 2x USB 2.0 Headers (Supports 4x USB 2.0 Ports)
- 1x SPEAKER Header
- 1x FAN Header
- 1x TPM Header
- 1x LPC_DEBUG Header
**Audio**
- Integrated 6-Channel HD Audio Codec
- Front Audio and Stereo Mic Support
**Networking**
- Integrated Gigabit LAN (10/100/1000 Mbps)
**Expansion Slots**
- 1x PCI Express x16 Slot
- 1x PCI Express x1 Slot
**Form Factor**
- Micro-ATX Design (17cm x 19cm)
**Operating System Support**
- Compatible with Windows 7/8/10
