SPECIFICATIONS

Application: Desktop

Audio Channels: 5.1

Back I/O Ports: 1x RJ45,COM,4 x USB 2.0

Battery Included: No

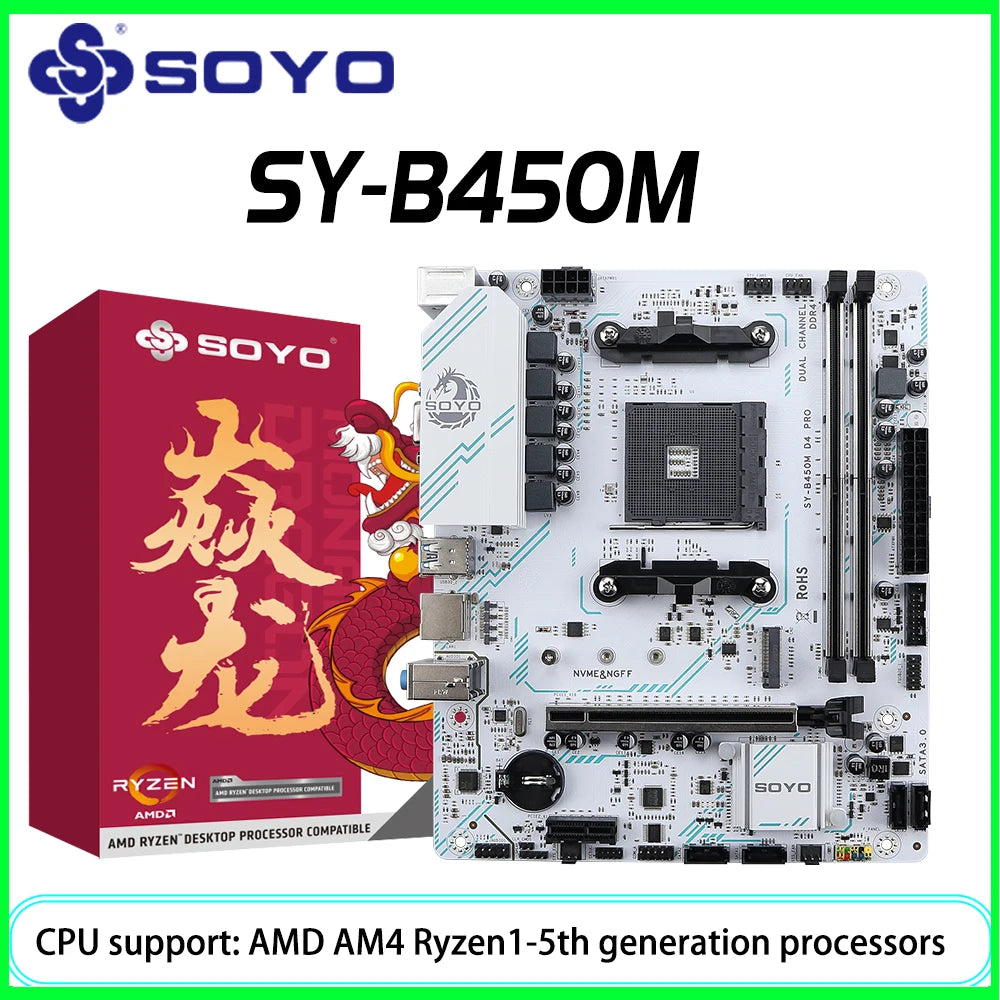

Brand Name: SOYO

Chipset: AMD B450

Chipset Manufacturer: AMD

Choice: yes

Form Factor: Micro-ATX

Hign-concerned Chemical: None

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 64 GB

Memory channel: Double

Number Of Memory Slots: 2

Number of M.2: 1

Number of PCI: 1

Number of PCIe x 16: 1

Number of SATA Ports: 4

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s)

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: PCI-Express X1

Processor compatibility: AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 2000 Series-R5,AMD Ryzen 1000 Series-R7,AMD Ryzen 4000 Series-R7,AMD Ryzen 3000 Series-R7,AMD Ryzen 1000 Series-R5,AMD Ryzen 3000 Series-R3,AMD Ryzen 1000 Series-R3,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5,AMD Ryzen 2000 Series-R7,AMD Ryzen 5000 Series-R3,AMD Ryzen 2000 Series-R3

RAID Supported: Yes

Socket Type: AM4

Special Features: None

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

Usage Scenario: Gaming,Audio & Video,Household,Office,Design,Scientific Computing,Video Rendering

With CPU: No

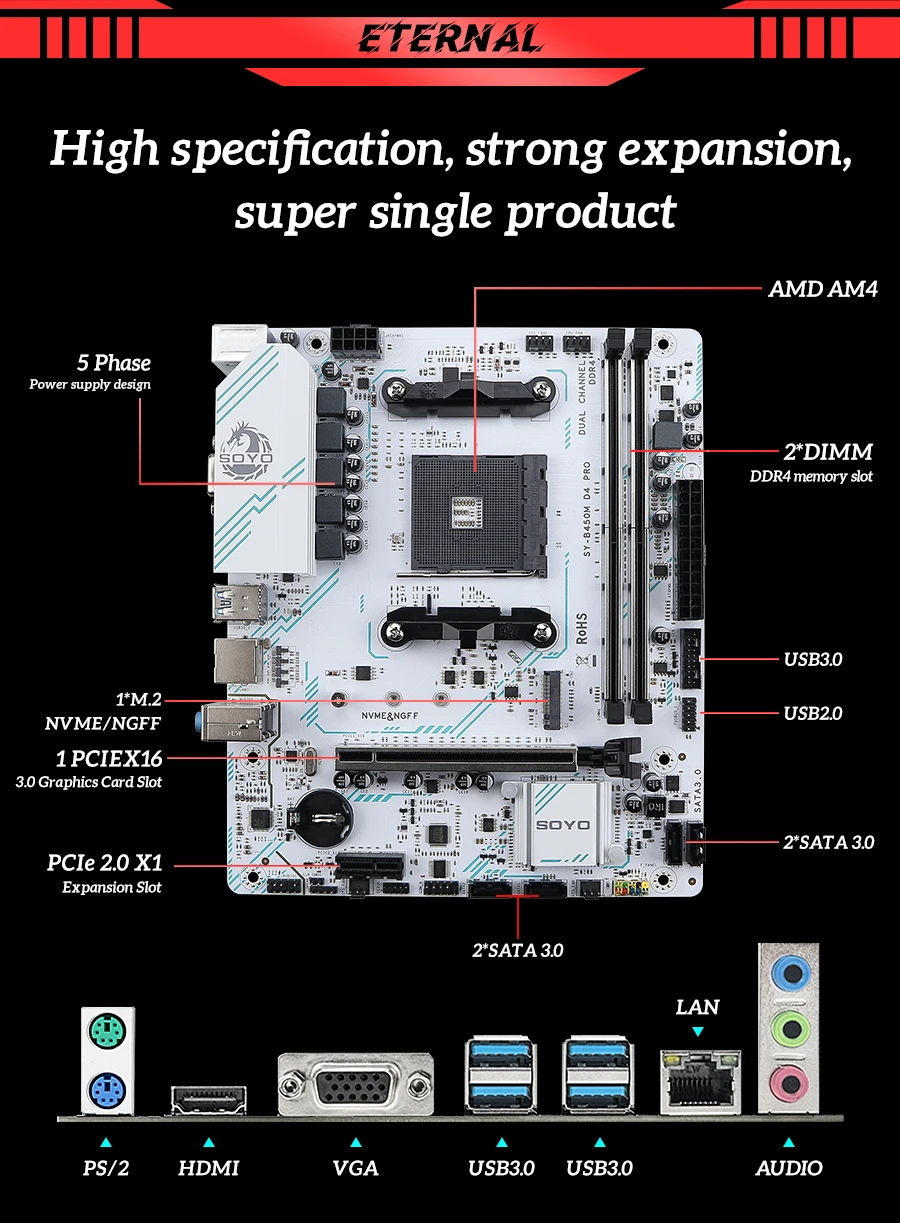

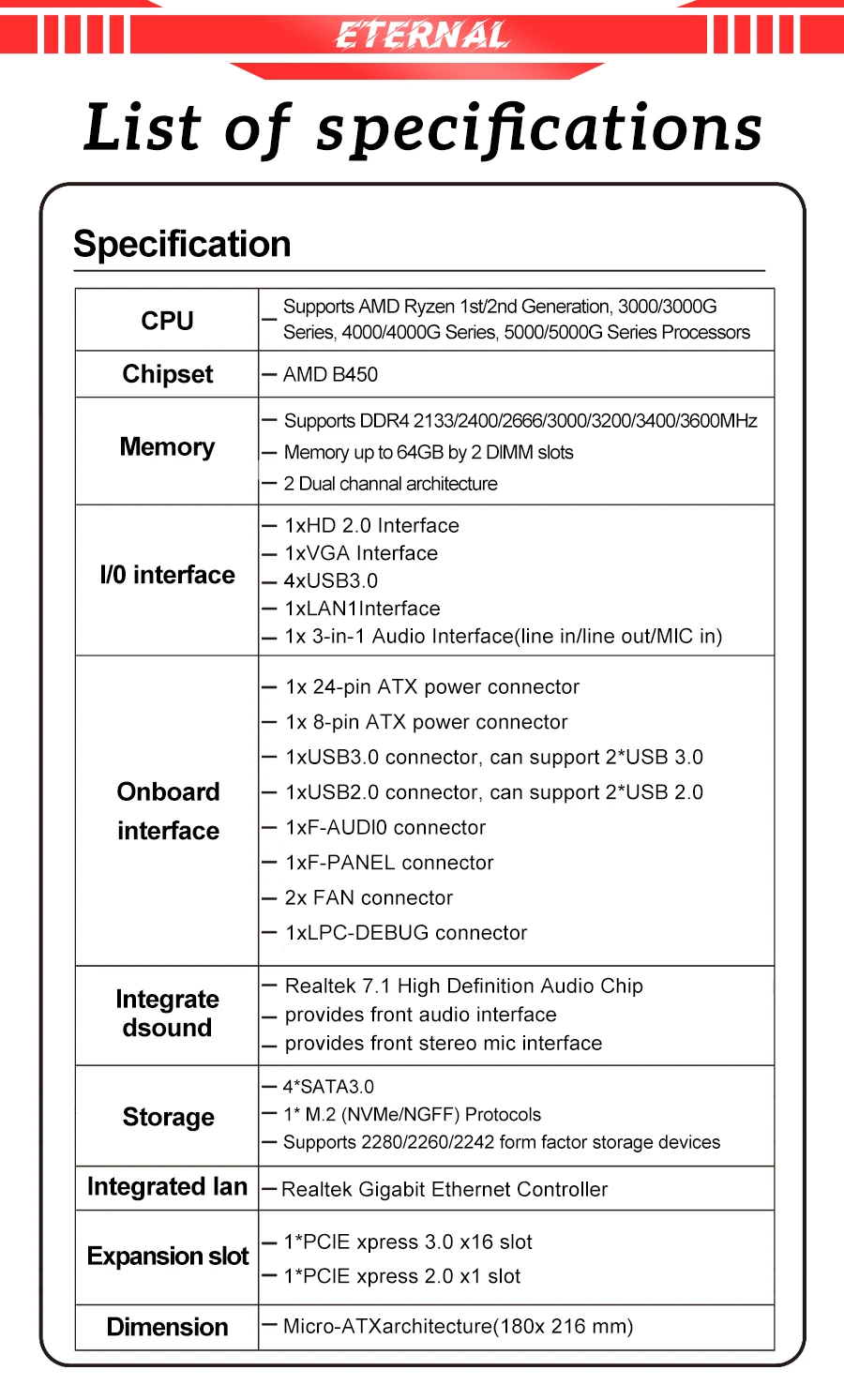

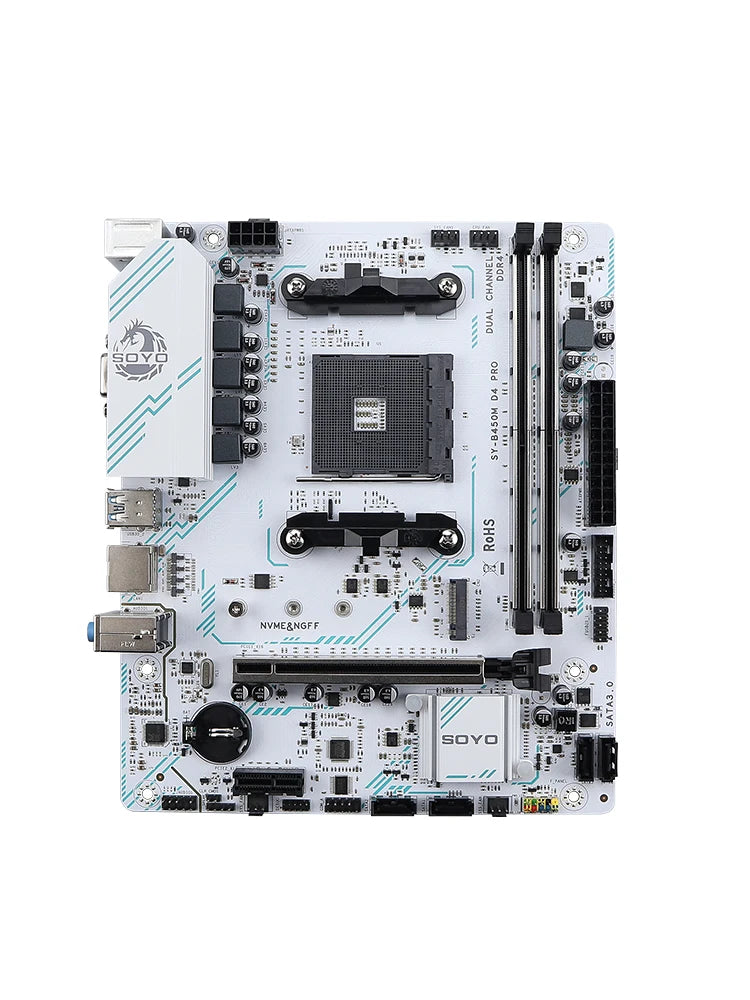

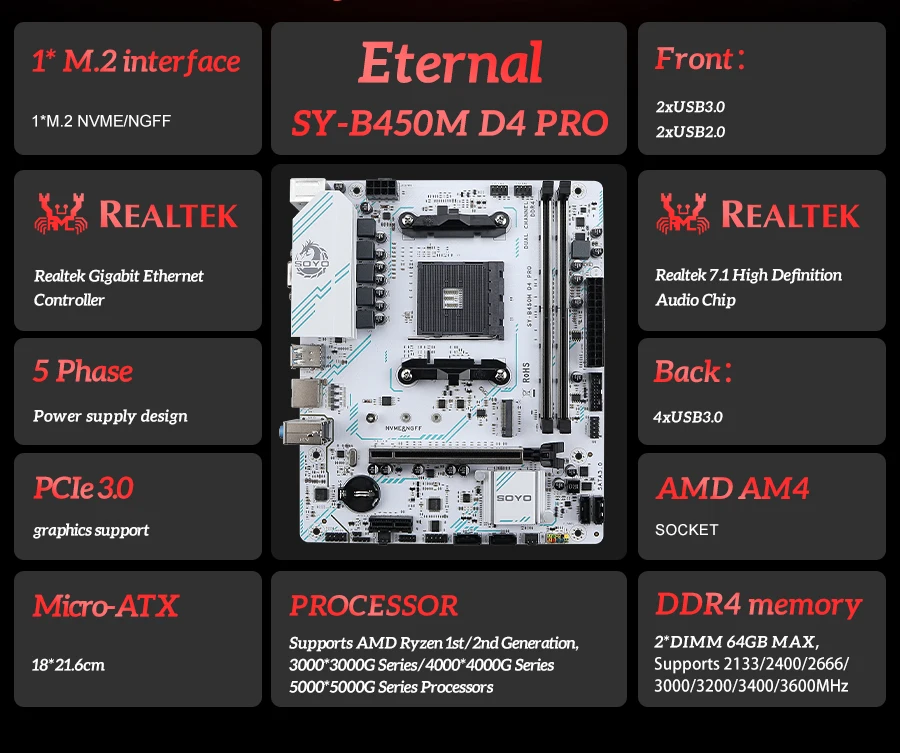

> > motherboard chip: AMD B450

> > CPU: supports AMD Ryzen 1,2, generation, 3000,3000G series /4000,4000G series /5000,5000G series processors.Example: R5-1400, R5-2600, R7-3700X, R3-4100, R5-5600G, etc.

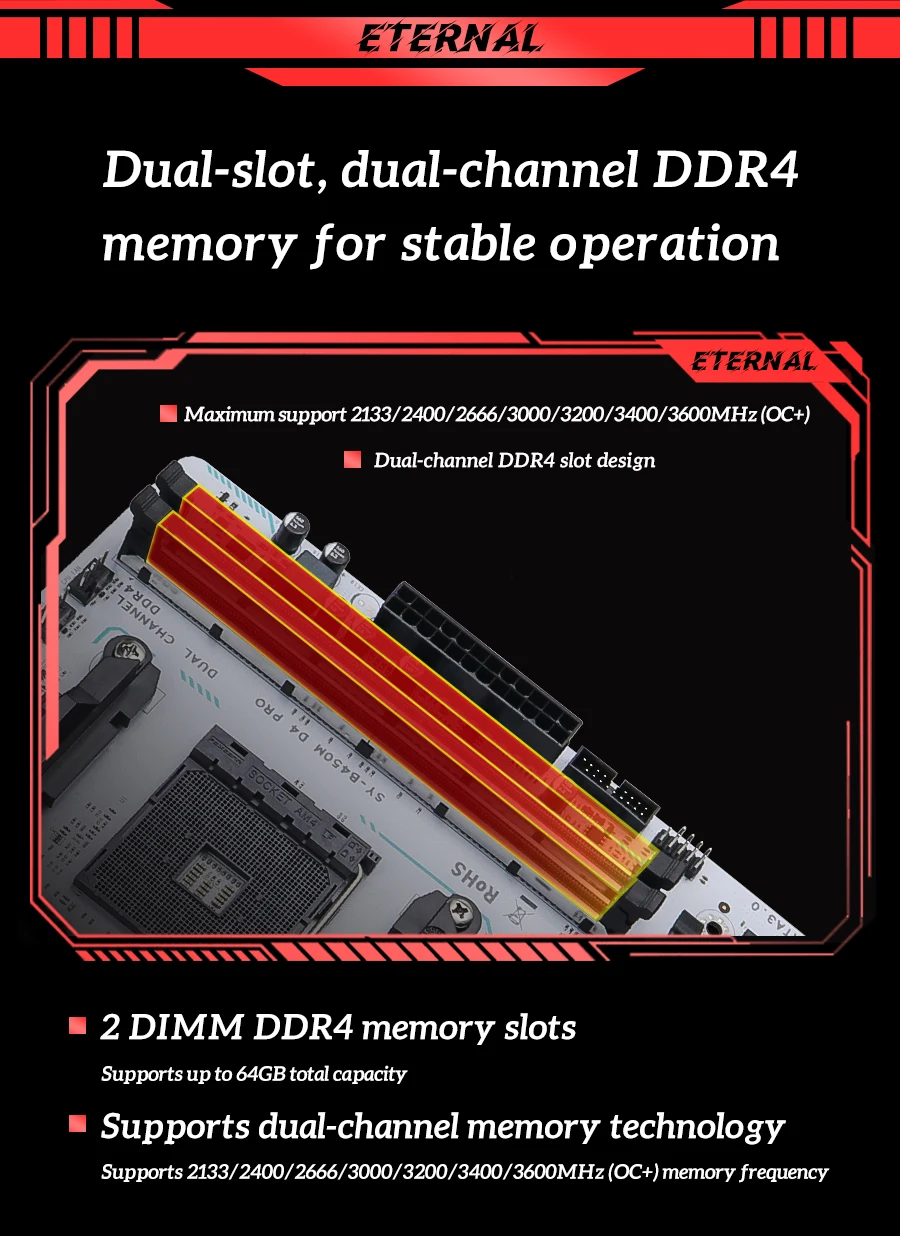

> > memory: 2 * 288-pinddr4 dual channel; Maximum support 64G(32G*2)Support 2133/2400/2666/3000/3200/3400/3600 MHz (OC), support XMP.(Actual memory frequency support depends on processor type and memory stick)

> > storage: 1 * m.2 slot (NVME&NGFF protocol); Support 2280/2260/2242 storage devices (M.2: PCIe 3.0x4 & SATA 3.0) 4 * SATA 3.0 interface.

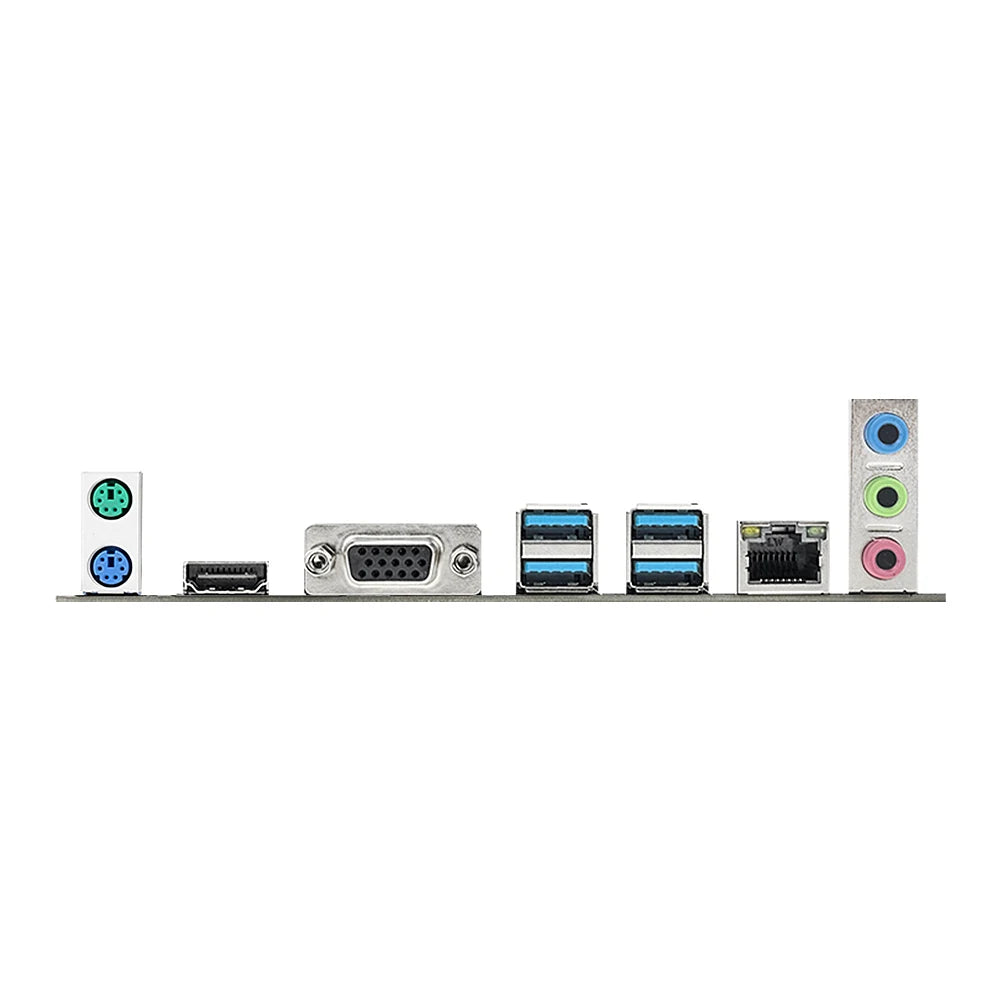

> > display interface: 1 * HDMI 2.0 interface, 1*VGA interface.> > Network: 1 * LAN1 interface (Realtek Gigabit network card chip)

> > PS/2: 1 * PS/2 keyboard; 1*PS/2 mouse

> > PCIE slot: 1 * pcie 1 _ x16 slot (pcie 3.0x16);1*PCIE2_X1 slot (PCIe 2.0x1);

> > audio: 1 * line out; 1*MIC In； 1*Line In； 1*JAUDIO1 built-in pin (Realtek 7.1 HD audio chip)

> > USB interface: rear panel: 4 * USB 3.0;Front panel: 1 set of FUSB20_1 pins (2 USB2.0 ports can be extended);1 set of FUSB30_1 connector (2 USB3.0 ports can be extended);

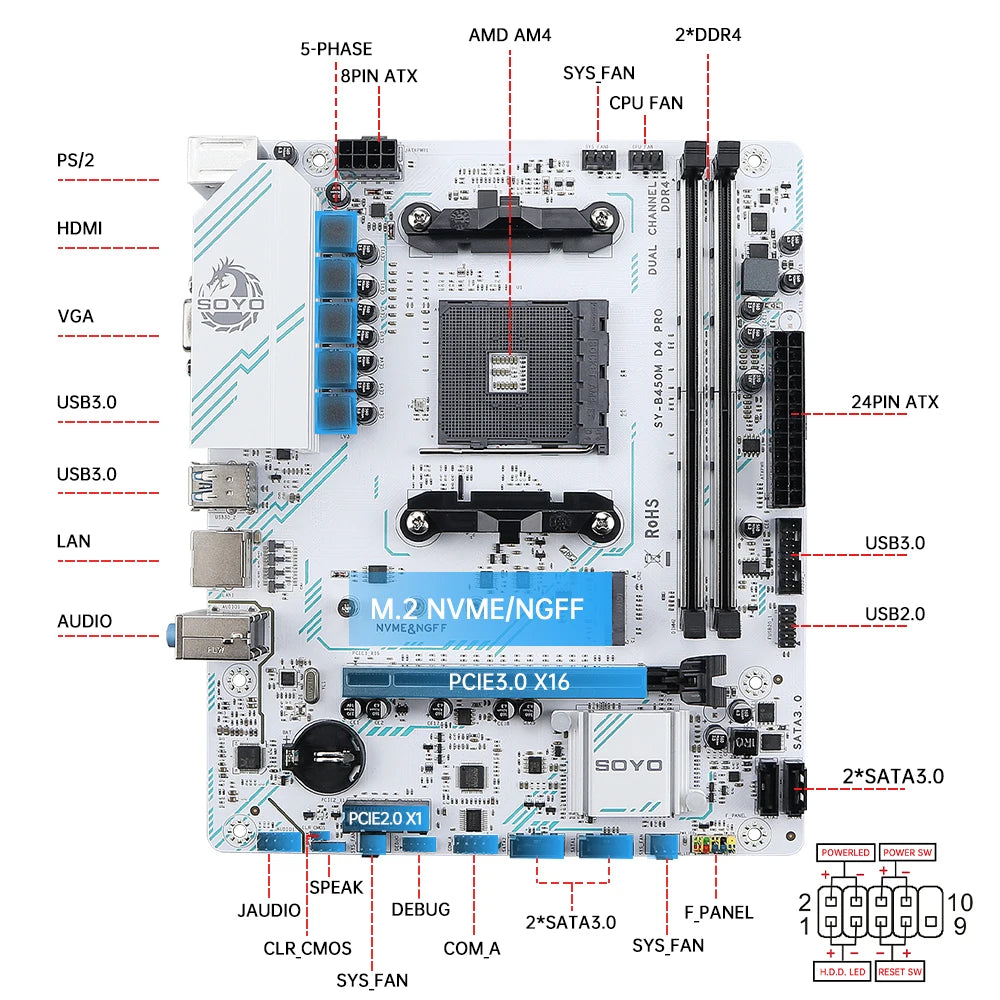

> > function pin: 1 * f _ panel panel pin; 1*4Pin CPU_FAN； 2*3Pin SYS_FAN； 1*4Pin SYS_FAN；

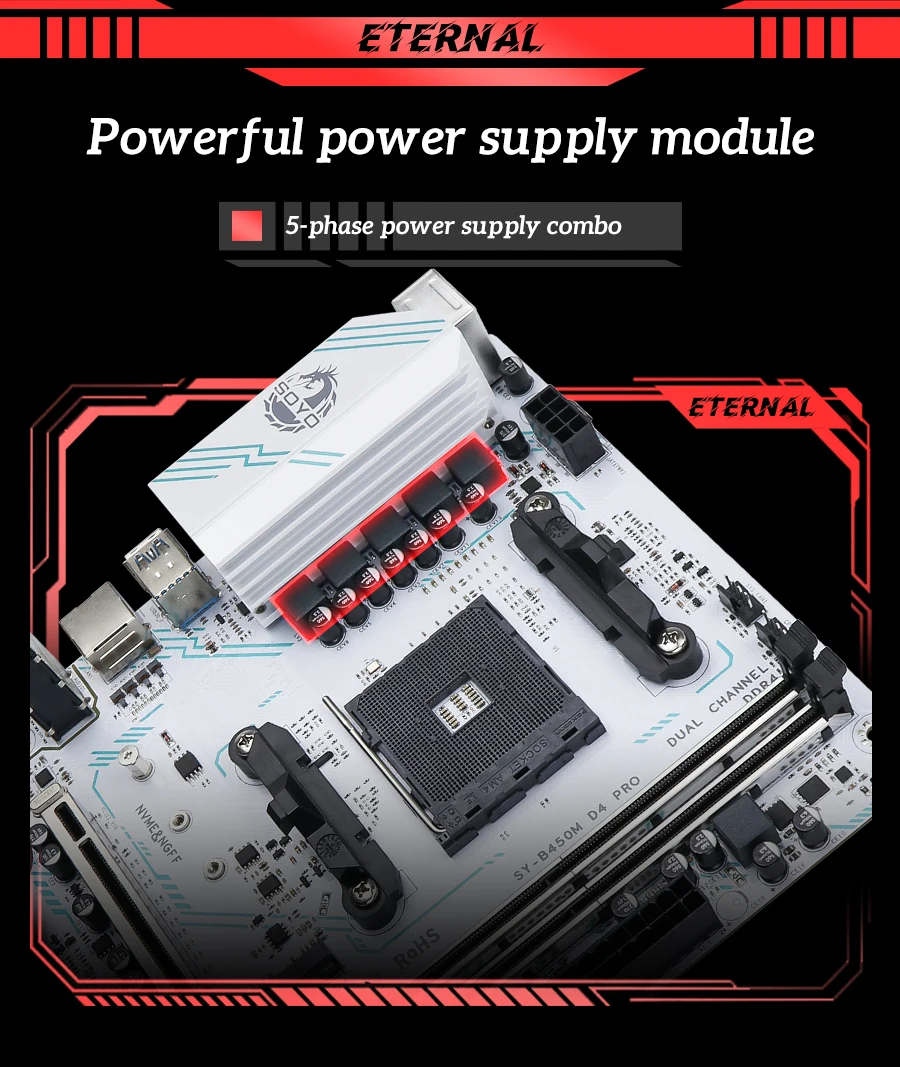

> > power input: 24Pin+8Pin ATX power socket.Product size 180x216mm4m-ATX motherboard specification,
