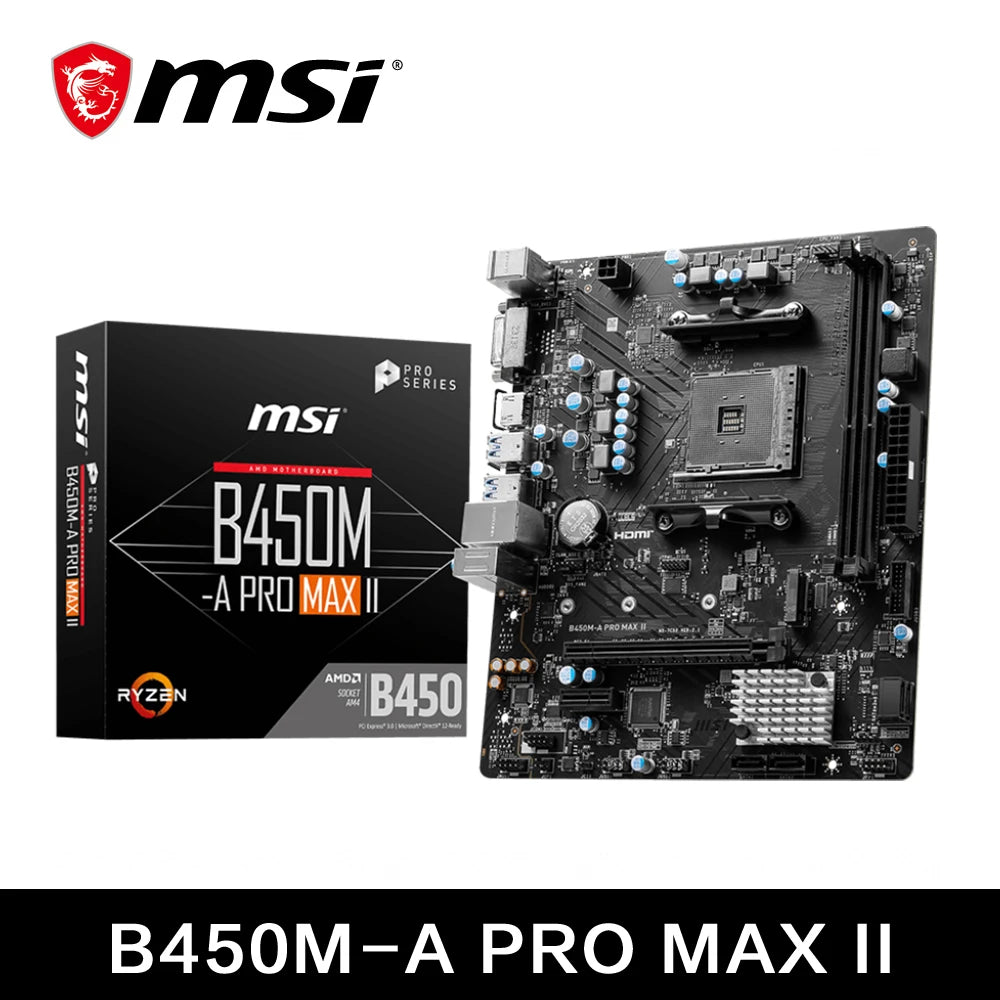

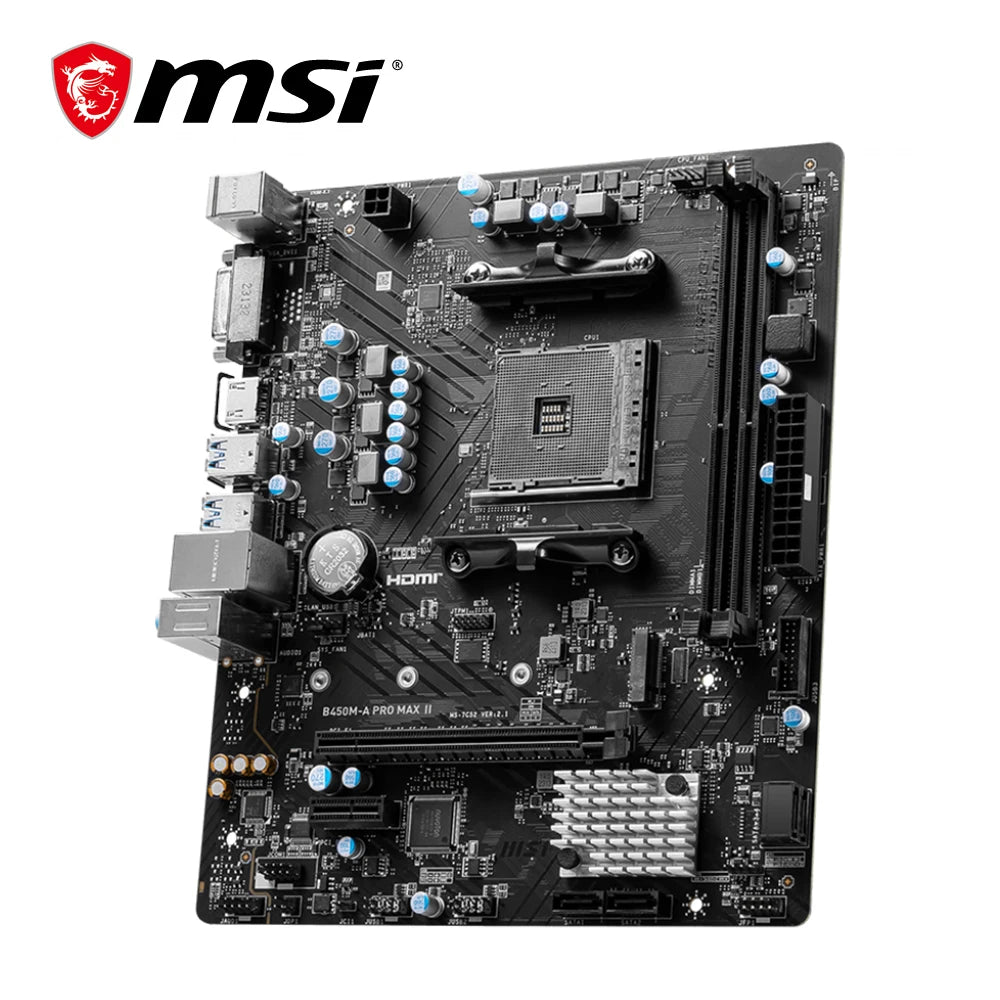

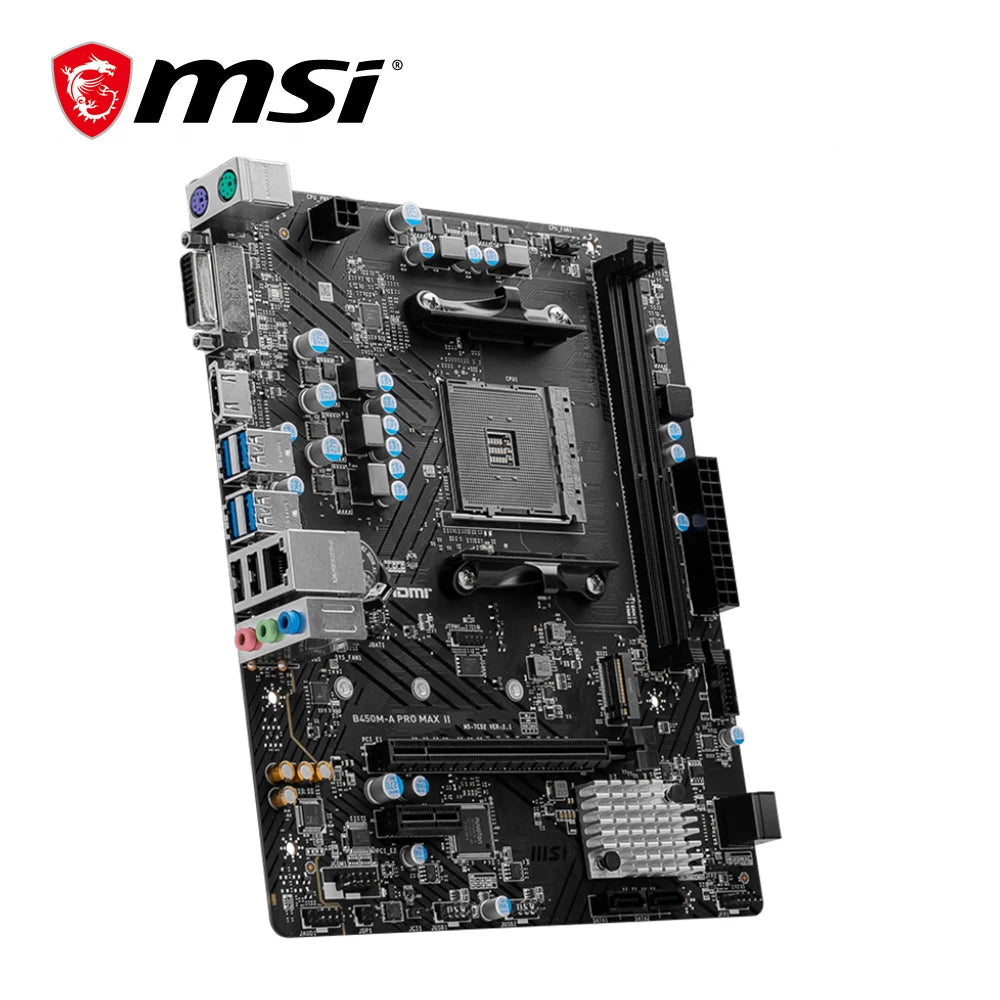

MSI AMD B450M-A PRO MAX II New Motherboard Dual-channel DDR4 Memory M.2 SATAIII USB3.2 Support R9 CPU Socket AM4 Mainboard
MSI AMD B450M-A PRO MAX II New Motherboard Dual-channel DDR4 Memory M.2 SATAIII USB3.2 Support R9 CPU Socket AM4 Mainboard
Couldn't load pickup availability
SPECIFICATIONS
Application: Desktop
Audio Channels: 7.1

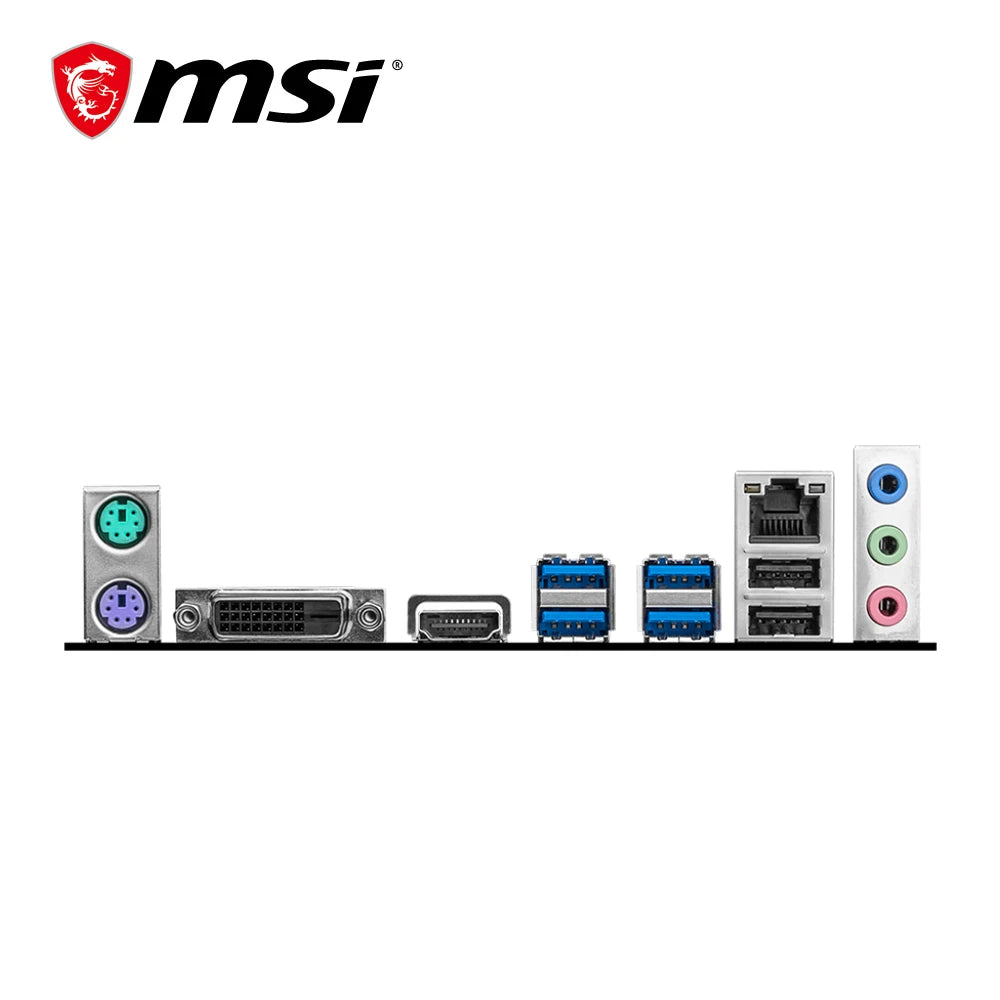

Back I/O Ports: 1x RJ45,6 x USB 2.0,3 x Audio Jacks,DVI-D,HDMI 2.0
Battery Included: No
Brand Name: MSI
Certification: CE
Chipset: AMD B450
Chipset Manufacturer: AMD
Choice: yes
Form Factor: Micro-ATX
Hign-concerned Chemical: None
MSI Model: B450M-A PRO MAX
Maximum Ram Capacity: 64 GB
Memory channel: Double
Number Of Memory Slots: 2
Number of M.2: 1
Number of PCI: 1
Number of PCIe x 1: 1
Number of PCIe x 16: 1
Number of SATA Ports: 4
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Processor compatibility: AMD Ryzen 5000 Series-R5,AMD Ryzen 5000 Series-R9,AMD Ryzen 5000 Series-R7,AMD Ryzen 5000 Series-R3
Quality Certification: ce
RAID Supported: Yes
Socket Type: AM4
Special Features: Support for Overclocking
Storage Interface Type: SATA,M.2 (NVMe)
Support Memory Type: DDR4
Support USB Type: USB 2.0,USB 3.2 Gen1
Supports M.2 SSD: 2242,2280,22110
Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,Design,Video Production
With CPU: No
SPECIFICATIONS
Model Name : B450M-A PRO MAX II (100% New)
CPU Support : Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G -Series, 3000 Series, 3000 G-Series, 2000 Series, 2000-G Series and 1000 Series desktop processors and Athlon™ with Radeon™ Vega Graphics desktop processors
CPU Socket : Socket AM4
Chipset : AMD®B450 Chipset
Graphics Interface : 1 x PCI-E 3.0 x16 slot
Display Interface : Support 4K@24Hz as specified in HDMI™ 1.4, DVI-D- Requires Processor Graphics
Memory Support : 2 DIMMs, Dual Channel DDR4-4133+MHz(OC)
Expansion Slots : 1 x PCI-E 2.0x1 slot
Storage : 1x M.2 Gen3 x4 32Gbps slot , 4x SATA 6Gbps ports
USB ports : 6x USB 3.2 Gen 1 5Gbps (6 Type-A) , 6x USB 2.0
LAN: Realtek® 8125BG 2.5G LAN
Audio : 8-Channel (7.1) HD Audio with Audio Boost
Note :

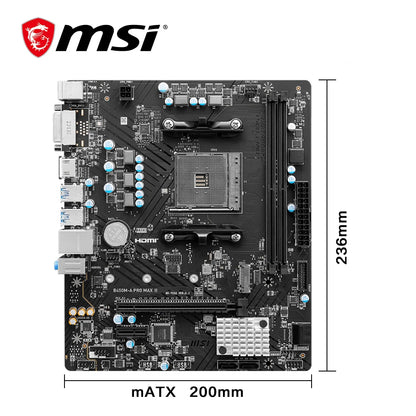

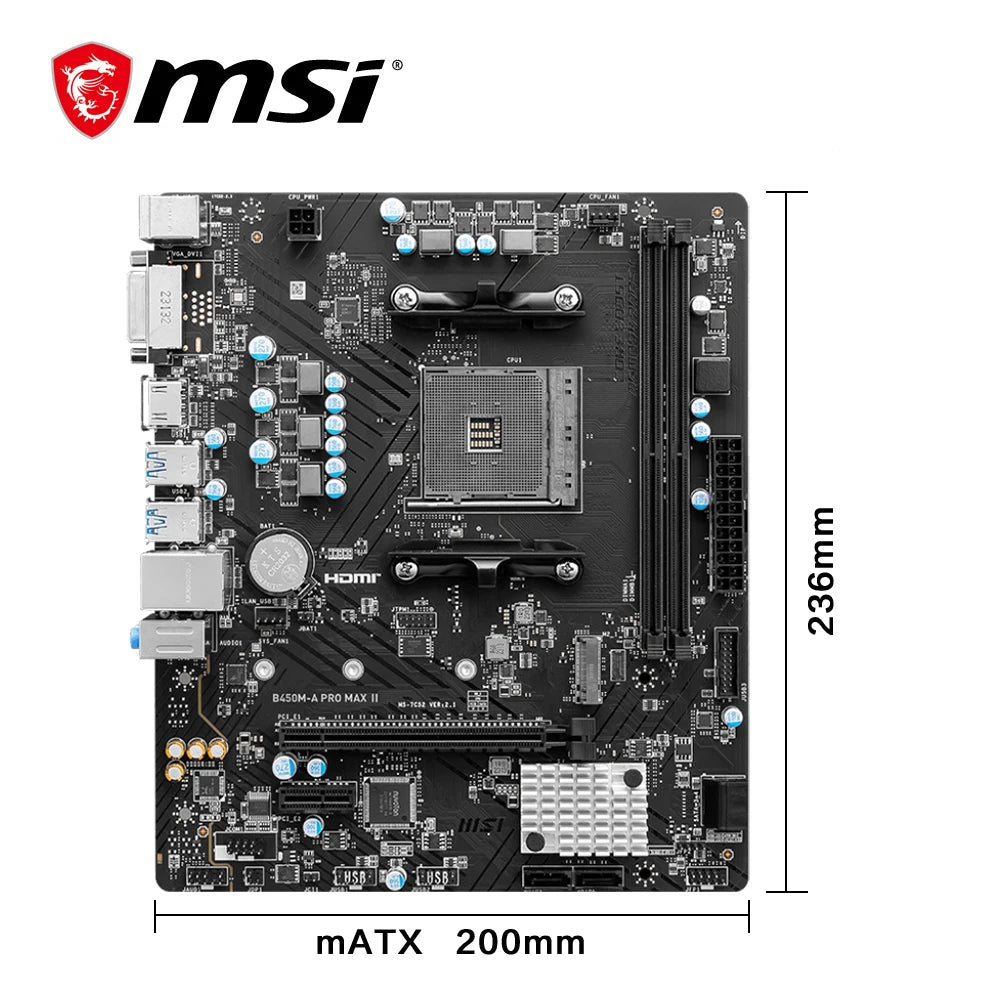

1 : Please allow 1-3mm differs due to manual measurement.
2 : Due to the different display and different light, the picture may not show the actual color of the item.Thanks for your understanding.
3 : We show photos of motherboard, pictures are for reference only, subject to our available products.
