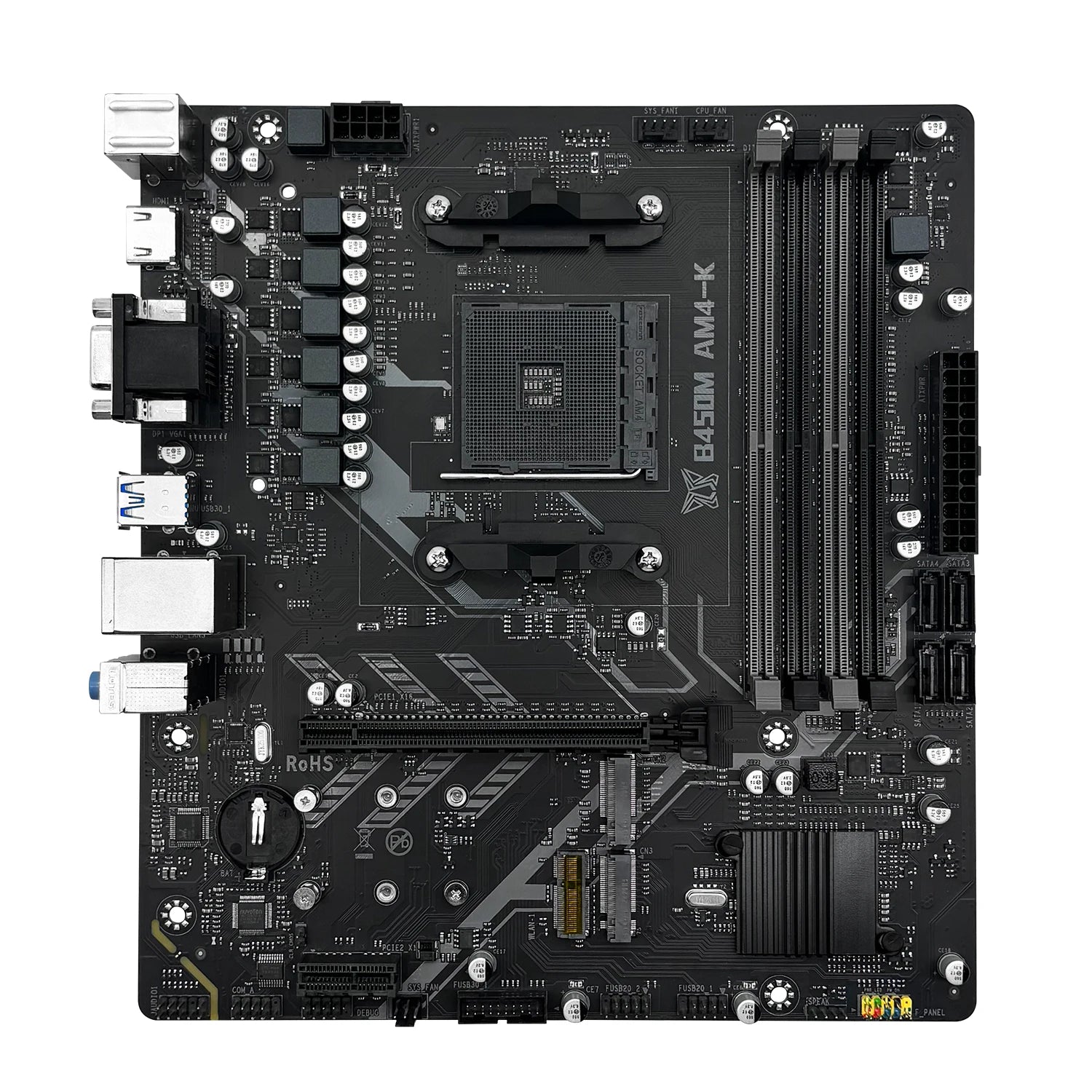

MACHINIST B450M-AM4-K ADM Motherboard Supports AM4 Series (Ryzen 1-5 CPU) DDR4 RAM Dual NVME M.2 With HDMI Interface VGA DP
MACHINIST B450M-AM4-K ADM Motherboard Supports AM4 Series (Ryzen 1-5 CPU) DDR4 RAM Dual NVME M.2 With HDMI Interface VGA DP
Couldn't load pickup availability
SPECIFICATIONS
Application: Desktop

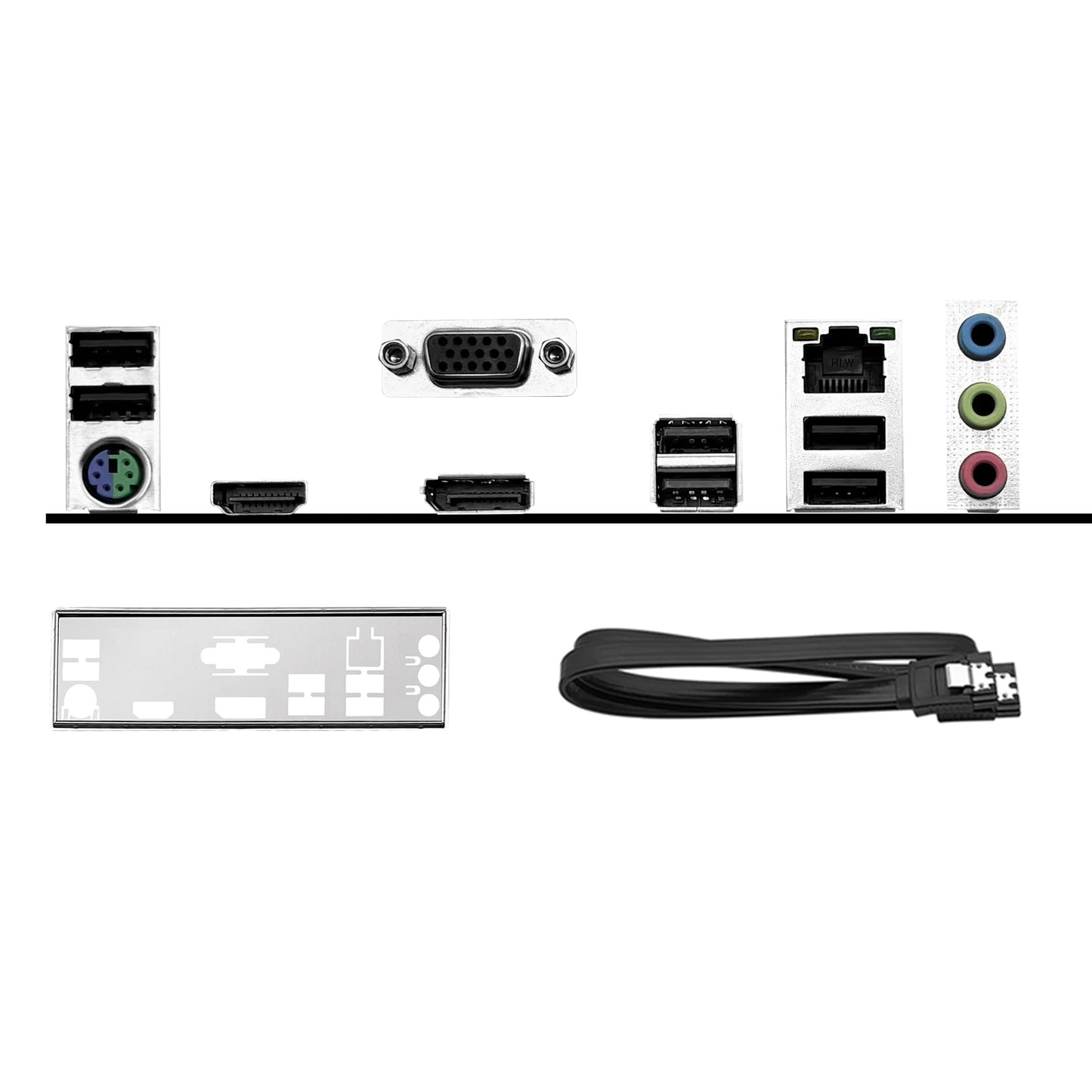

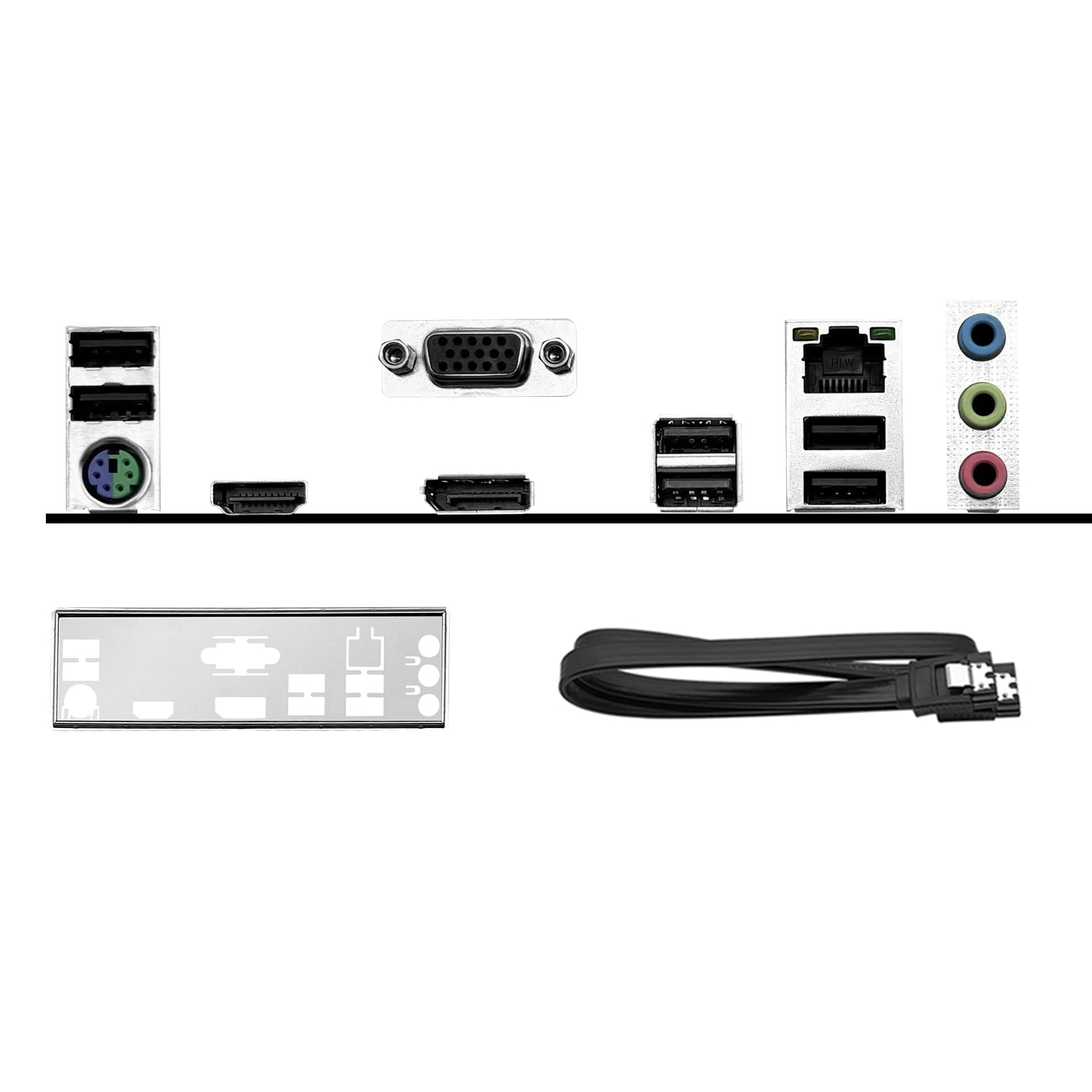

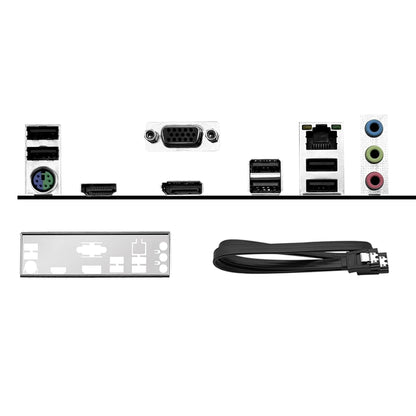

Back I/O Ports: 1x RJ45,VGA (D-Sub),PS/2 Combo,3 x Audio Jacks,HDMI 1.0,4 x USB 2.0,PS/2
Battery Included: No
Brand Name: MACHINIST
Certification: RoHS,CE
Chipset: AMD B450
Chipset Manufacturer: AMD
Choice: yes
Form Factor: CeB,Micro-ATX
Hign-concerned Chemical: None
Maximum Ram Capacity: 128 GB
Memory channel: Double
Number Of Memory Slots: 4
Number of M.2: 3

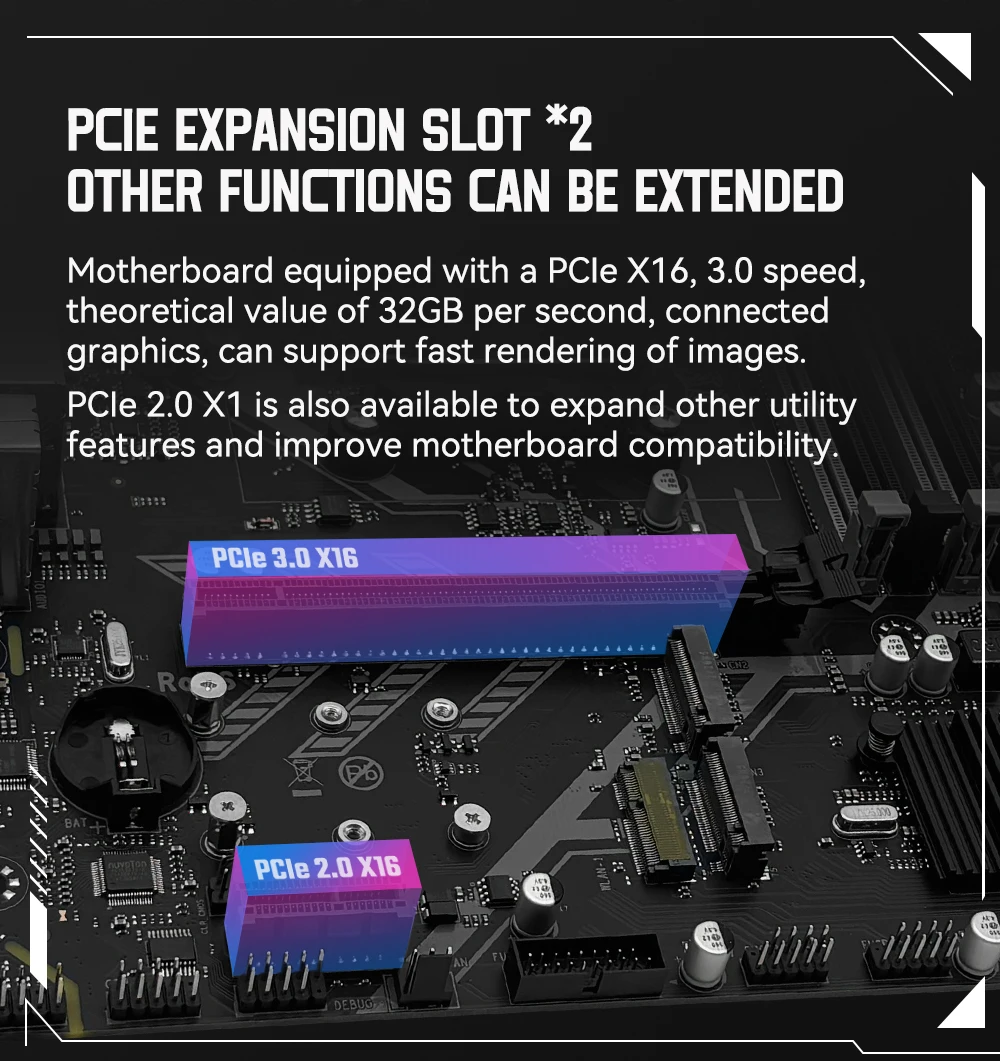

Number of PCI: 2
Number of PCIe x 1: 1
Number of PCIe x 16: 1
Number of PCIe x 4: 0
Number of PCIe x 8: 0
Number of SATA Ports: 4
Onboard Connectors & Header: 24-pin Main Power Connector,4-pin +12V Power Connector
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Ports: USB 3.0
Processor compatibility: AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5
Quality Certification: ce,ROHS
RAID Supported: No
Socket Type: LGA 2011-3
Special Features: None
Storage Interface Type: SATA 3,M.2 (NVMe)
Support Memory Type: DDR4
Support USB Type: USB 2.0,USB 3.0
Supports M.2 SSD: 2280
Usage Scenario: Gaming,Audio & Video,Office,Video Production,Mini PC,others
With CPU: No

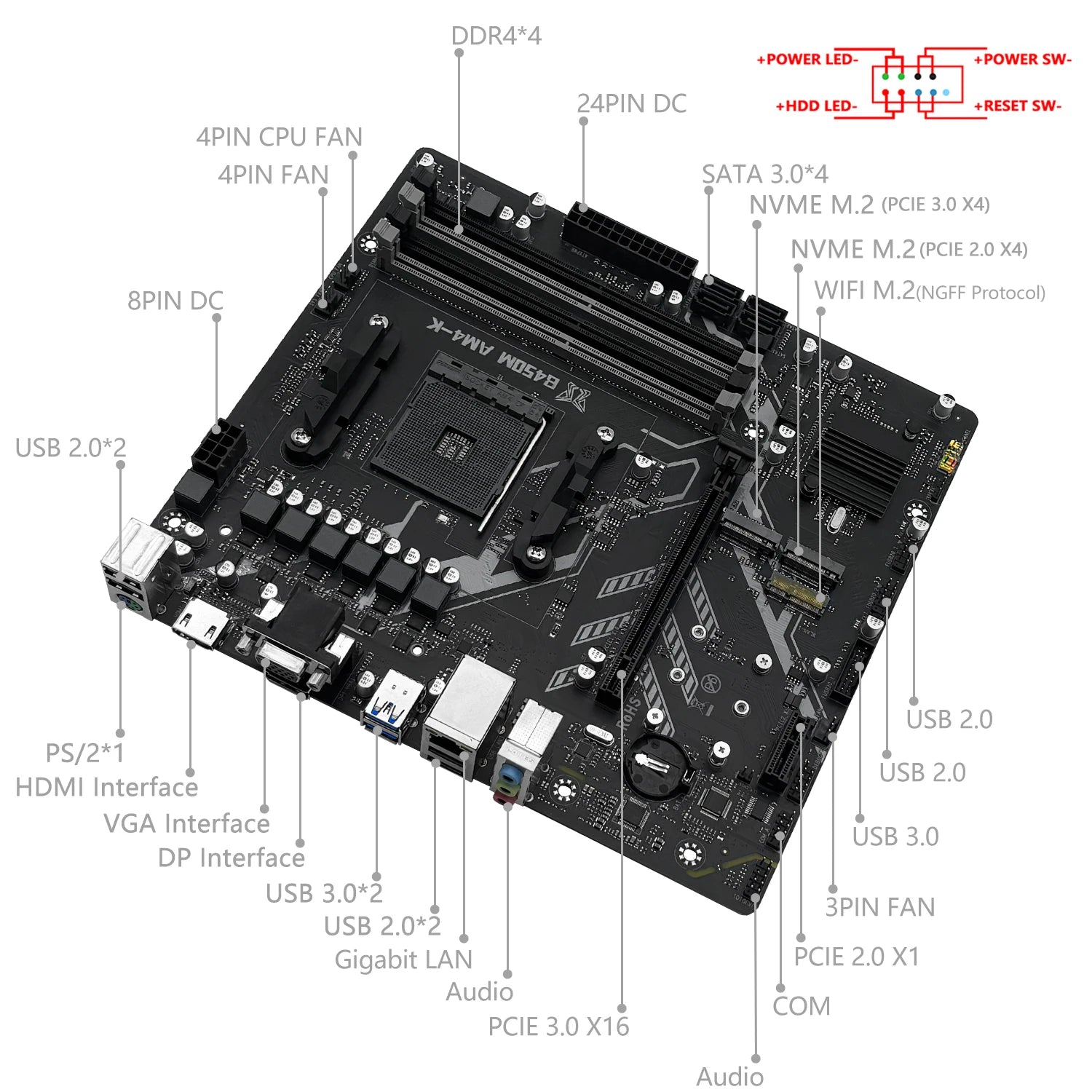

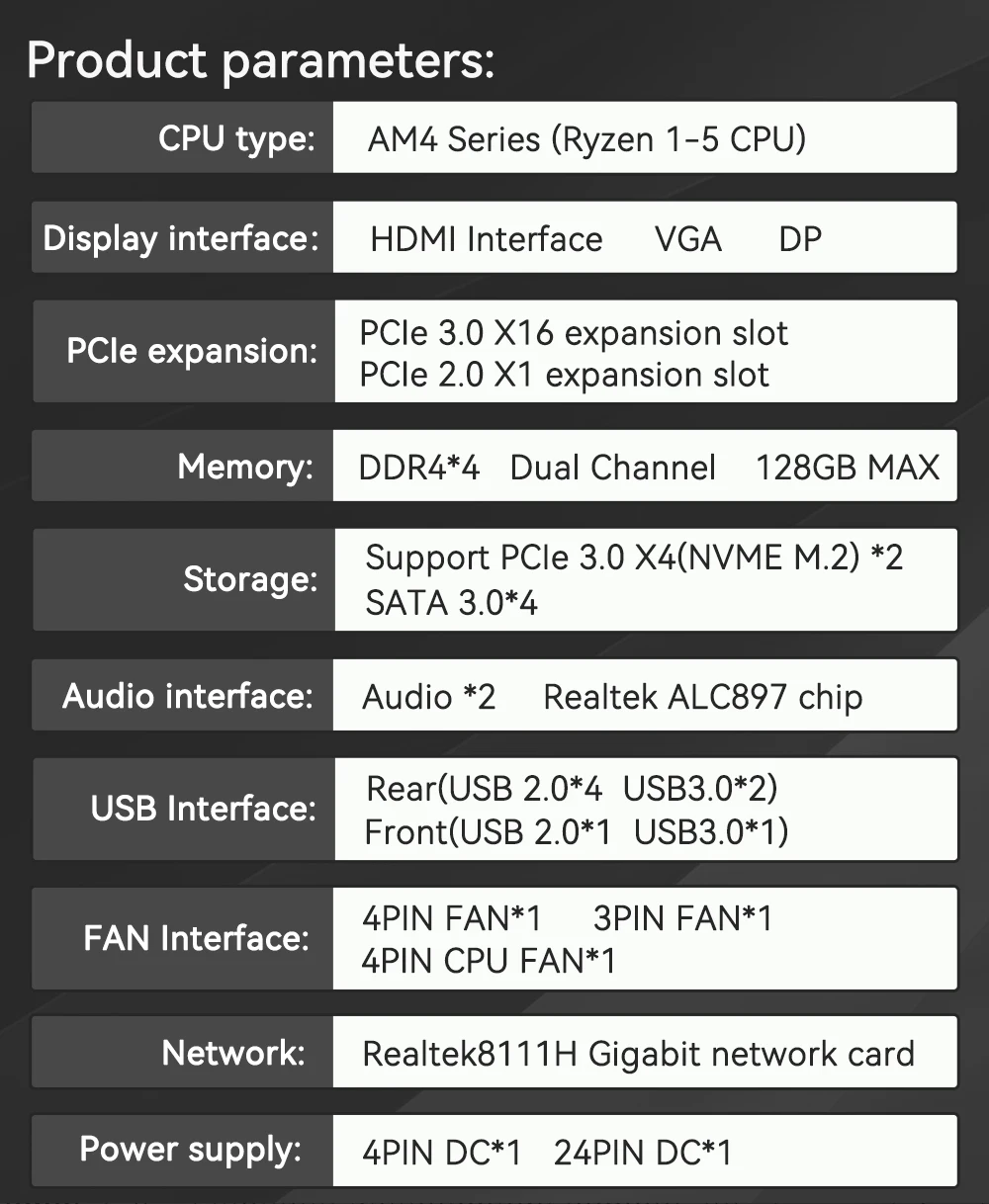

Motherboard parameters:
① Only supports PCIe (NGFF) wireless network cards, not CNVI.
② Specifications: PCIe 2.0 x4, only supports PCIe (NVME), not SATA (NGFF) SSDs. The maximum measured speed is 831 Mbps.
③ Specifications: PCIe 3.0 x4, only supports PCIe (NVME), not SATA (NGFF) SSDs. The maximum measured speed is 3700 Mbps.
Chipset: AMD B450

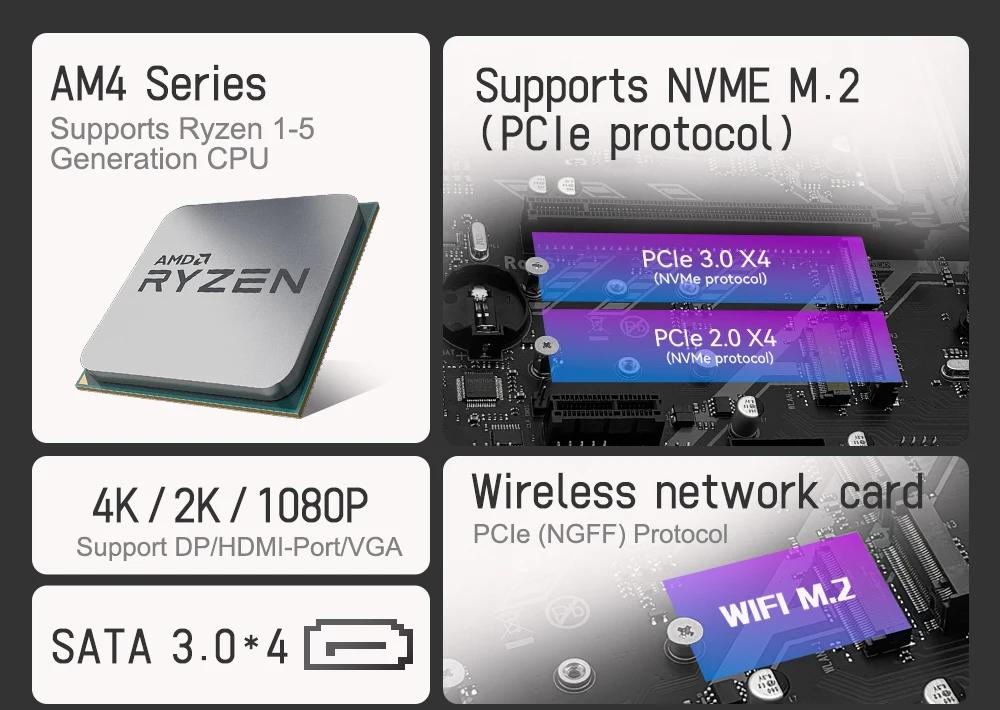

Supported CPUs: AM4 socket, AMD Ryzen 1-5th generation
Supported Memory: Desktop DDR4, dual-channel, maximum frequency 3600 MHz (CPU-dependent), maximum supported capacity 32 GB * 4 = 128 GB. The top two memory sticks are inserted into two black slots (inserting into two gray slots will not power on).
Supported Hard Drives: SATA hard drives support SATA 2.5-inch SSDs and 3.5-inch mechanical hard drives; M.2 hard drives support NVME (PCIe) and M.2 Solid-State Drive
Sound Card: Realtek ALC897 High-Definition Sound Card
Network Card: Realtek 8111H Gigabit Network Card
Boot Key: F11
How to Enter the BIOS: After pressing the power button, keep pressing the DEL key until the BIOS screen appears (pressing the DEL key on the numeric keypad will not work).

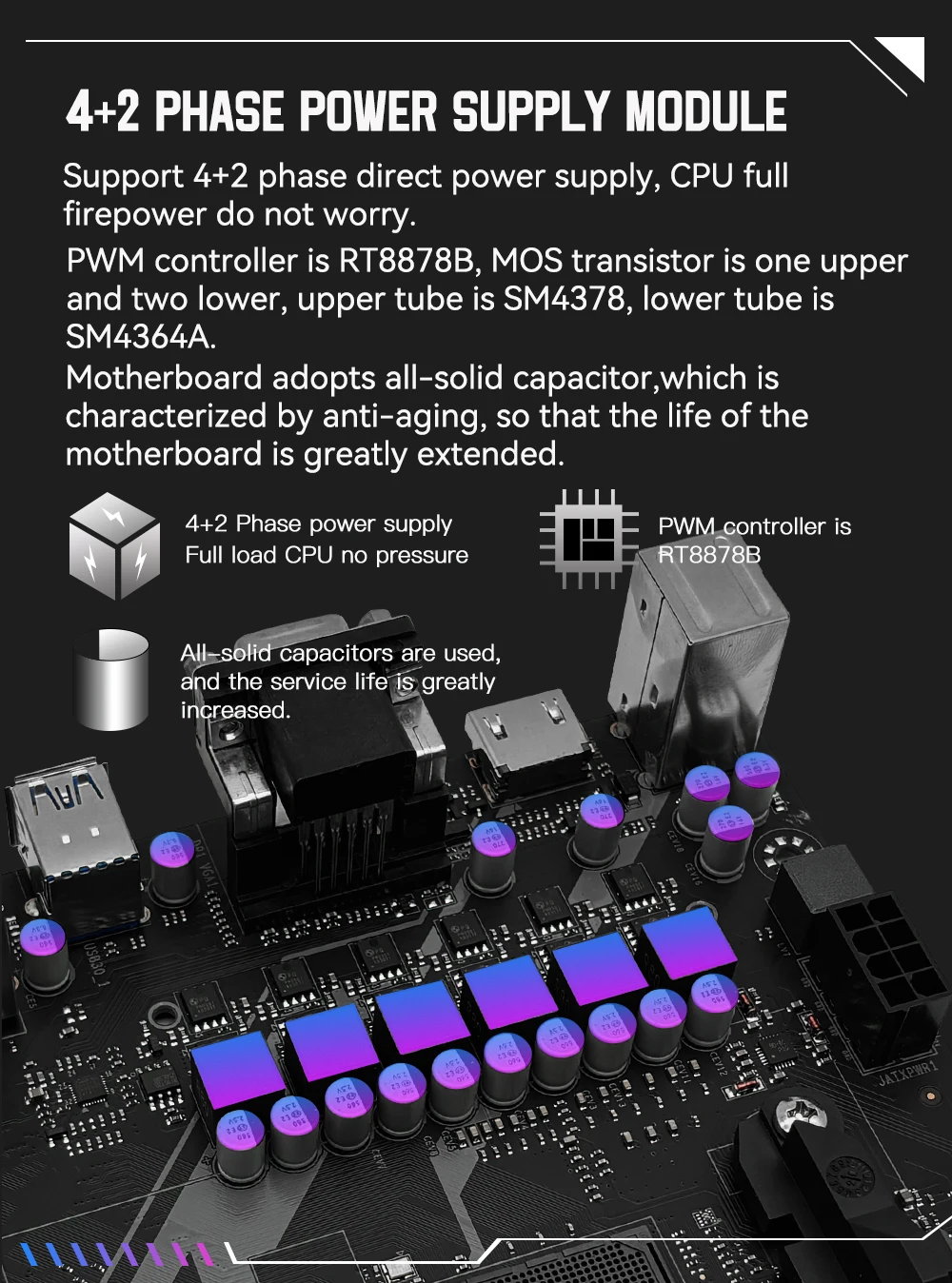

CPU Power Supply Details: The CPU uses a 4+2 direct-phase power supply, with 4 phases powering the CPU core. PWM controller: RT8878B, MOSFETs: one up and one down.

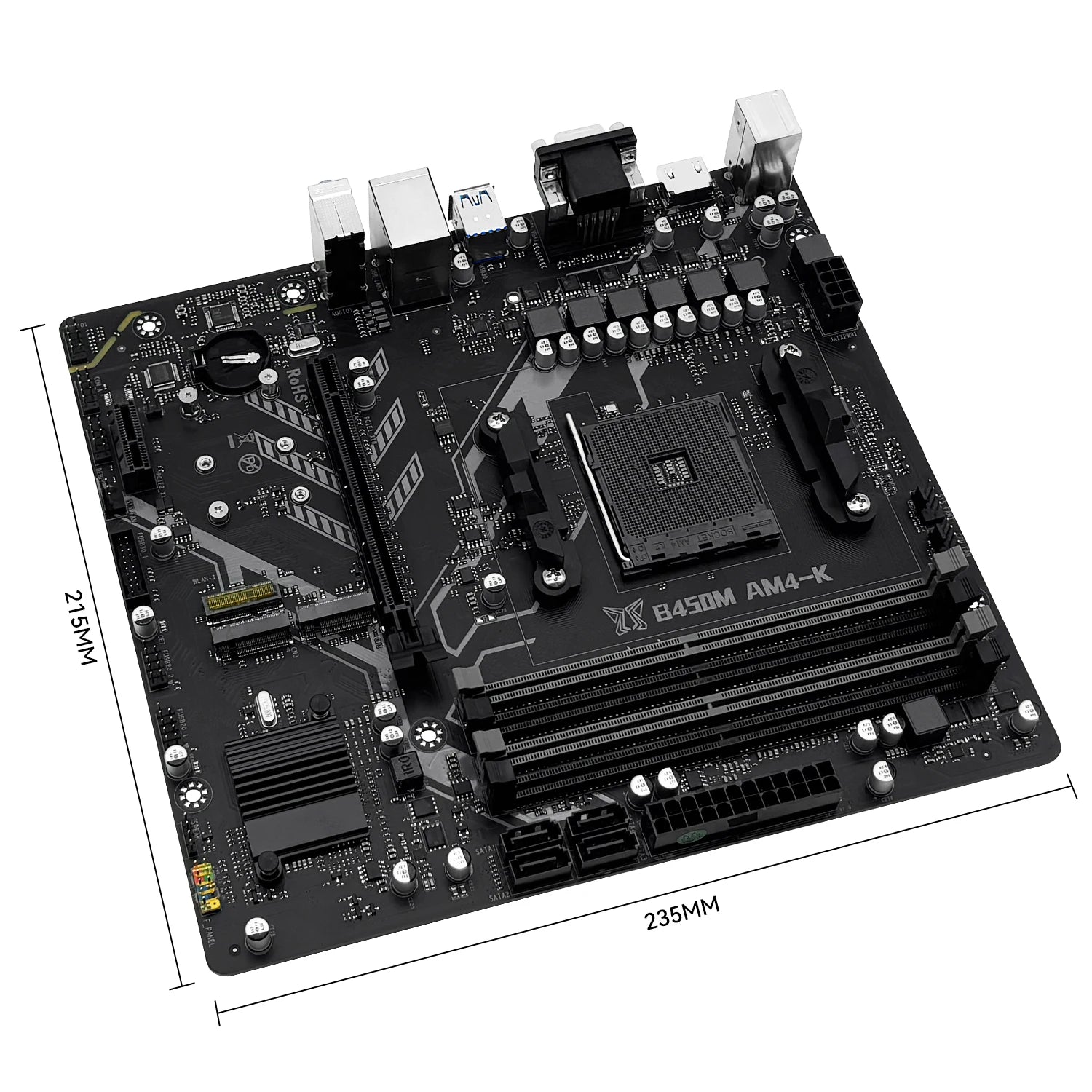

Dimensions: M-ATX, 215mm x 235mm
BIOS Features: Supports TPM 2.0, Secure Boot, Hibernation, XMP, PBO, CPU overclocking, Chinese/English switching, Wake-on-LAN, automatic boot on incoming call, diskless boot, and fan speed control.
NOTES：
(1) The color of the slot base plate may vary from batch to batch, but this will not affect the use of the product. The product is continuously optimized and upgraded.
(2) Please allow 1-3mm error due to manual measurement.
(3) Due to different monitors and light, the picture may not show the actual color of the item. Thank you for your understanding.
(4) This plan requires a strong power supply. Please make sure your power supply is sufficient to support this plan. (At least 500w type power supply).
(5) The battery in the motherboard picture is not included and will be removed before shipment because this battery is prohibited according to logistics requirements.
