1:Motherboard and processor do not include integrated graphics, please use a discrete graphics card to test the suite during testing and make sure your graphics card works properly.
2:There are only NVME slots on the motherboard, please be careful not to install NGFF in the NVME slots, as this will cause incompatibility problems.

3:This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 600w brand power supply)

CPU:

Processor Series: Ryzen 5 3600(6 cores/12 threads)

Main frequency: 3.6GHz

Technology: 7nm

Power consumption: 65W

CPU is used, condition good, 1 year warranty

Memory:

Chip: SEC / HY/ MIC and others (ship at random)

Type: Desktop Memory

Frequency: DDR4 3200MHz

Capacity: 16GB(2X8GB)
(Two 8G sticks of RAM)

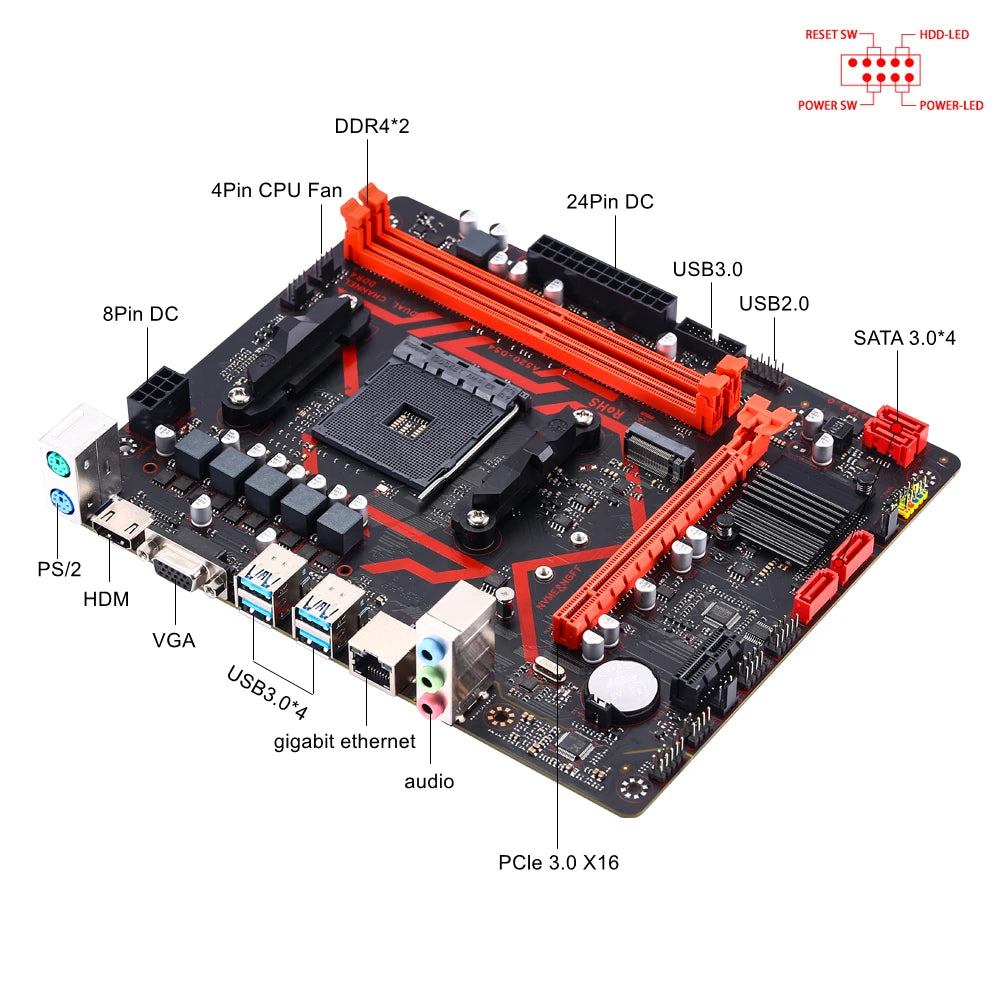

Feature:

Brand:Kllisre

Item Type: A520 Motherboard

Main Chip:A520

Socket Type: LGA AM4

Graphics Card Slot:1*PCI-Ex16 1*PCI-Ex1

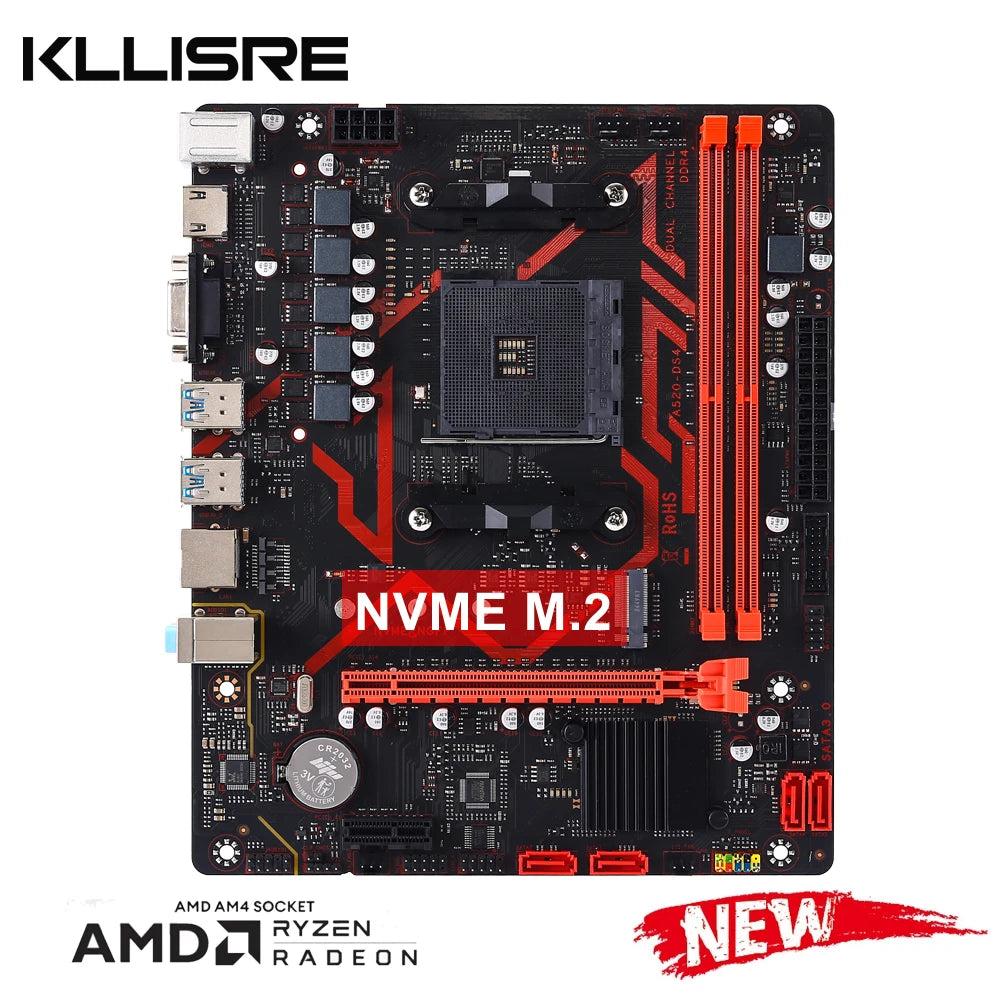

Expansion Slot:NVME M.2

Integrated Video Card: No (Also requires the processor to support integrated graphics.)

PCB Layers:6

Ethernet: Gigabit

CPU supported: Ryzen 3/4/5/6/7 Series Processor

Memory type supported: 2400/2666/3200mhz Desktop Memory

Memory Slot: Dual channel

Memory Capacity Peak: 32Gx2 DDR4

SATA Interface:SATA3.0*4

USB Interface: USB3.0x4(not including expansion)

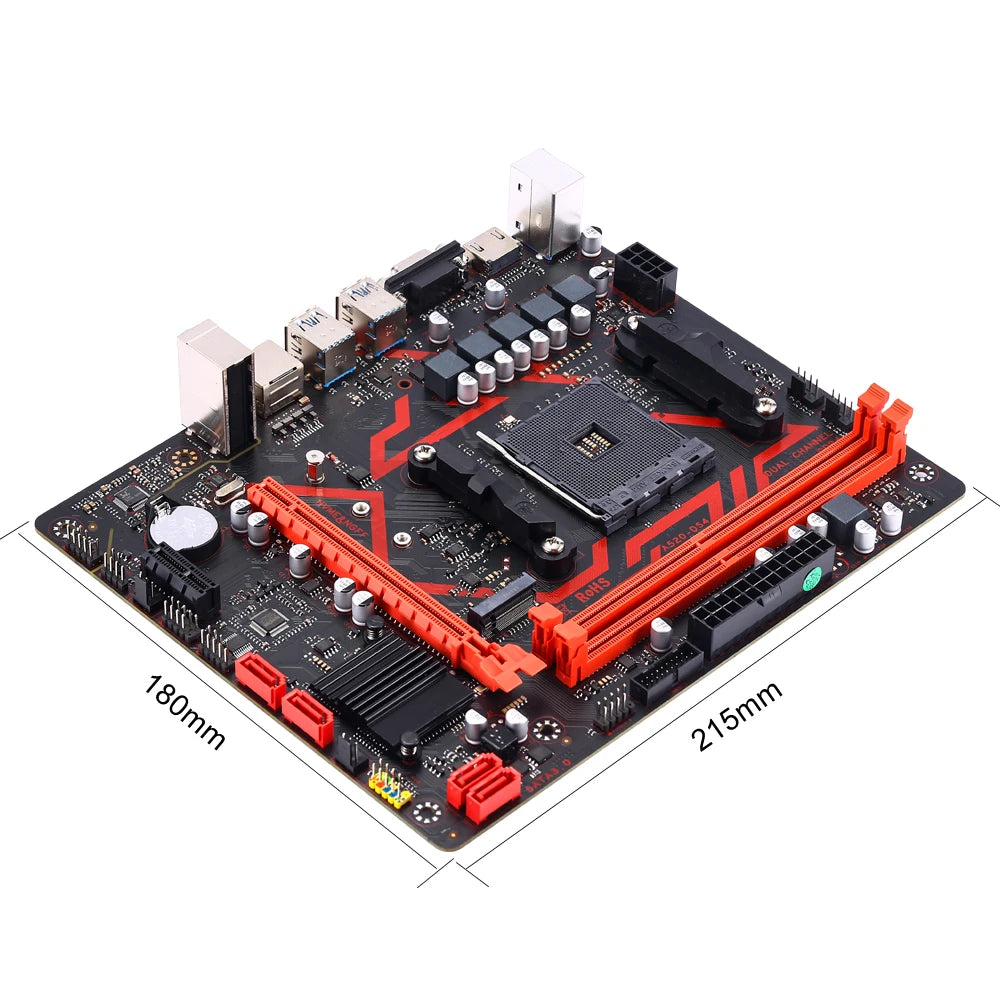

Size: 216x180mm

Note:

1:Please allow 1-3mm differs due to manual measurement.
2:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
